Product SKU: Motor-106
CLA Series Linear Actuator
CLA Series Linear Actuators are compact, self-locking, feature an ACME screw drive, a Aluminium alloy gear housing, aluminium extension and protection tubes, powder metal gears, and are ideally suited for off-highway equipment applications.
Specification:
Voltage: 12V DC
Rated Current: 2A (For 6000N version, ampere is 5A)
Rated Power: 20W (For 6000N version, power is 55W)
Max. Speed: 70mm/s(for 150N) or 10mm/s(for 700N) or 10mm/s(6000N big size )
Max. Load (N = newton force) : 700N / 150N
Wire Length: 75cm
Travel Distance: 100mm, 150mm, 200mm, 250mm, 300mm, 400mm & 500mm
Type: Flexible
L = Shortest distance to install the linear motor
S = Travel Distance
For travel distance below 300mm, L = 105mm + S(travel distance)
For travel distance above 300mm, L = 145mm + S(travel distance)
For example:
for 150mm travel distance, L = 105mm+ 150mm = 255mm
for 500mm travel distance, L = 145mm+ 500mm = 645mm
Accesories:

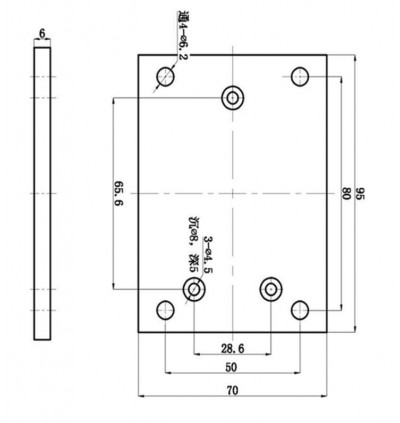

Fixed Based Aluminium Plate (+RM14/pcs):
Flexible Bracket (+RM 7/pcs) :
